Mailsecur

Find Mail Threats

That Other Screening
Technologies Miss

Quick, highly-accurate detection of all 9 of the DHS designated CBRNE substances.

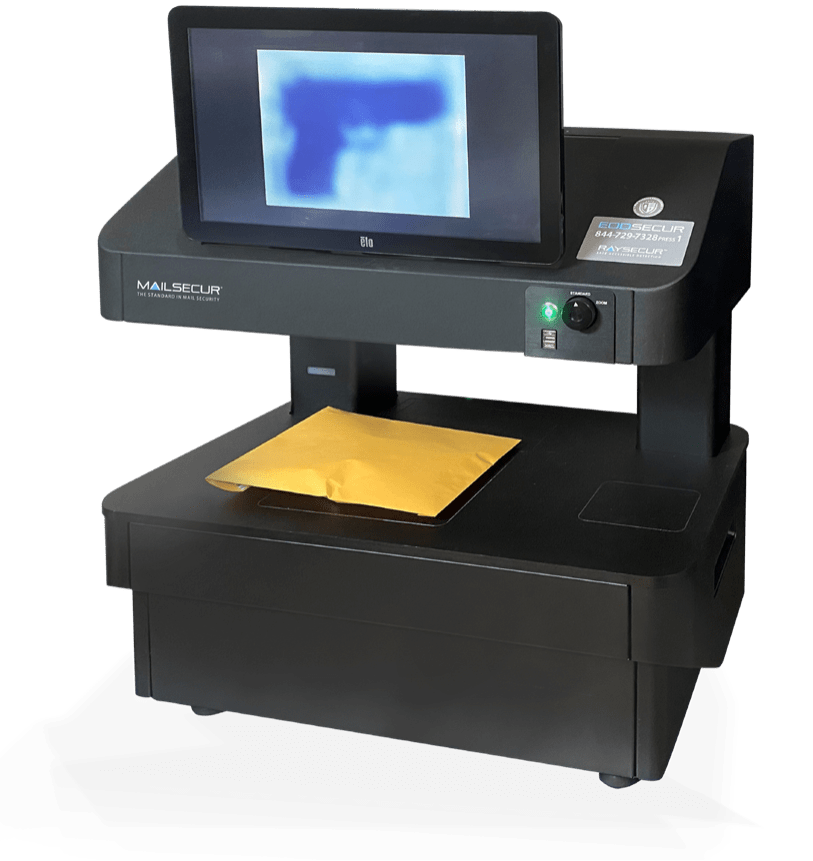

The MailSecur® solution fills a critical gap not addressed by traditional X-ray screening technology – the
ability to detect the most elusive mail threats. Traditional methods of mail screening, like X-ray or chemical
detection, are not sensitive enough to effectively detect threats like liquids, powders, and drug-laced paper.
MailSecur uses safe T-rays to “see inside” letters and packages, with live, 4D imaging. It detects all 9 of the

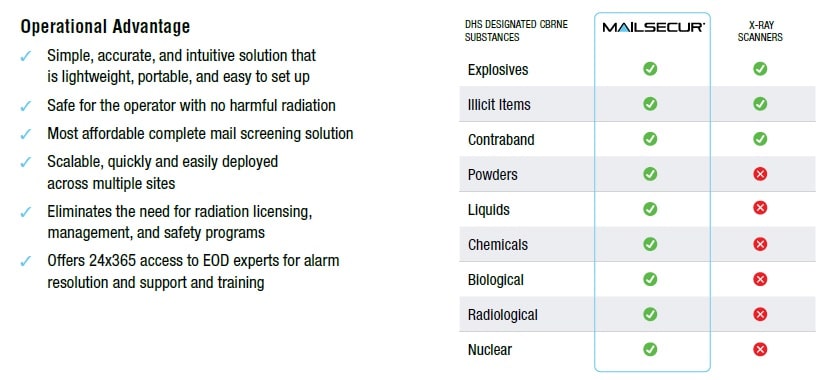

DHS designated substances compared to only 3 out of 9 for X-ray. Remote screening capabilities are built-in
with around-the-clock access to former military explosive ordnance disposal (EOD) experts.

4 OF THE 5 LARGEST
US COMPANIES ARE PROTECTED BY

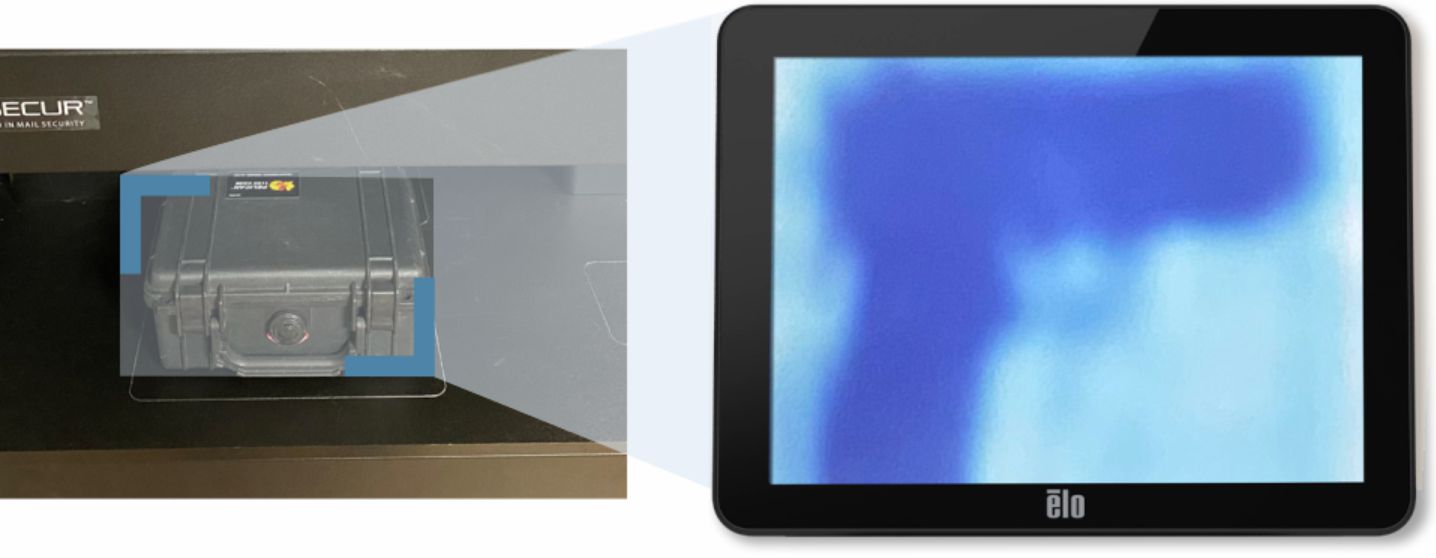

Firearms

A handgun is clearly displayed by the MailSecur scanner. The T-ray technology can penetrate a variety of cases, including hard side, lockable vessels. Given the 4D, live video capability, an operator can rotate the object to get an alternate perspective of the ?rearm, zoom in on speci?c features, and determine whether any other substances may be included.

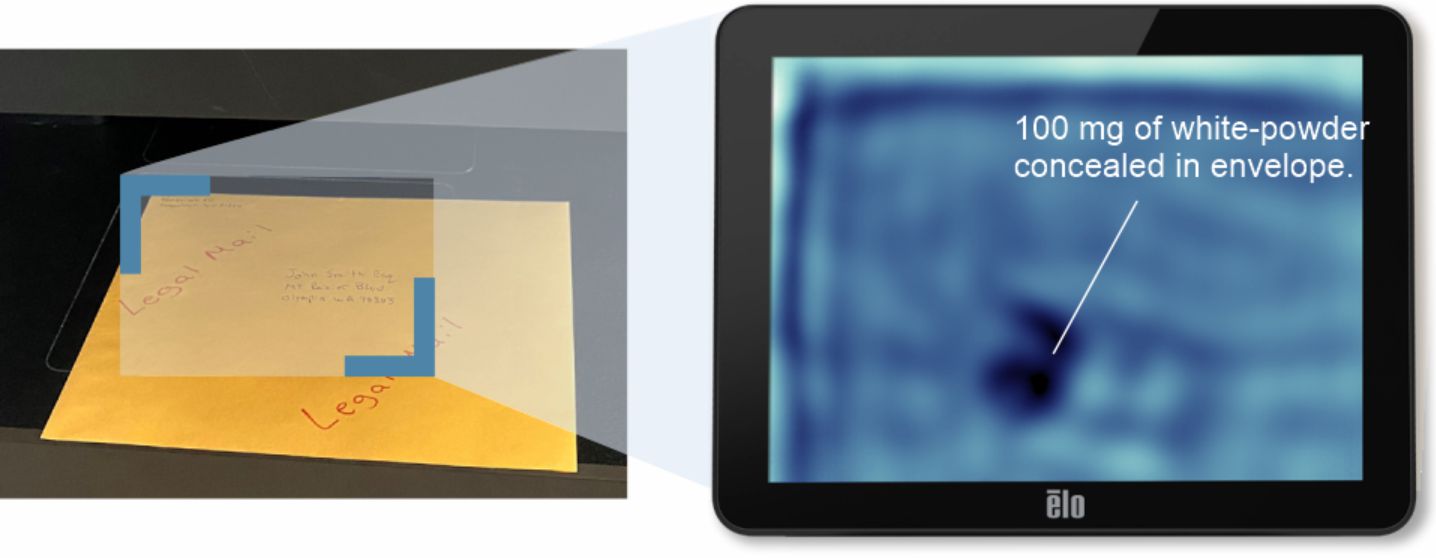

Powders

The small quantity of powders placed in envelopes makes it dif?cult or impossible for other technologies to detect. With the live 4D video provided by MailSecur, an operator can physically move the envelope and see the actual grains of powder moving within the mail item.

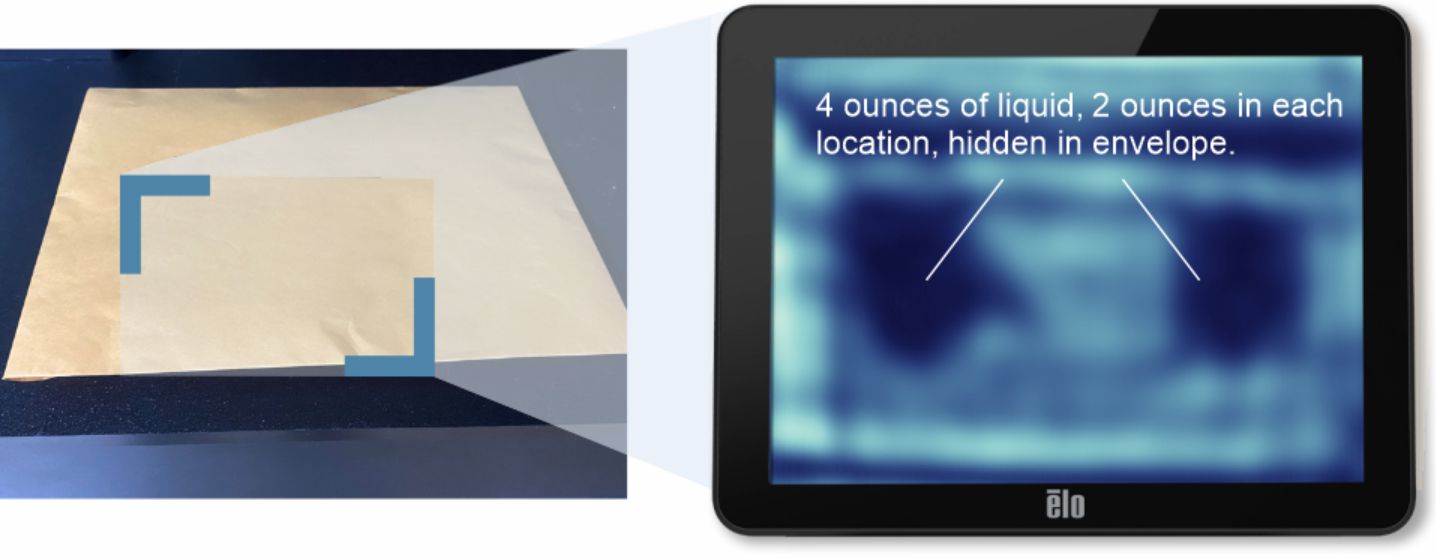

Liquids

In the same manner as powders, while an X-ray scan may pick up
the outline of the substance, it cannot discern the movement. Yet, the MailSecur operator can manipulate the items and easily determine a liquid substance even much smaller quantities than can be detected by X-ray.

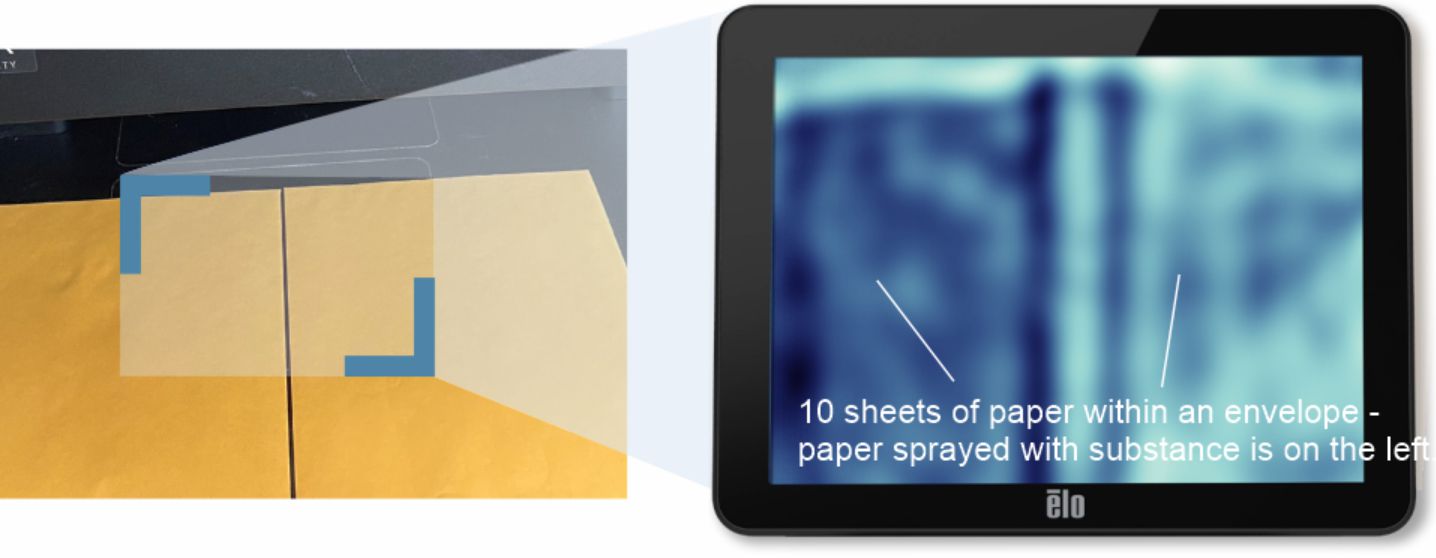

Laced Papers

Paper sprayed with a toxic or narcotic substance and allowed to dry may be imperceptible to the human eye. MailSecur detects the changes that occur to the paper and displays the affected areas as a darker color gradient, making it easy to detect chemically-altered papers, even concealed within envelopes and packaging.

Intuitive Operation

MailSecur scanners have 10x greater resolution than
mmWave scanners used in airports. It is also superior to
X-ray machines for mail scanning, detecting more threat
types, including powders and liquids with 300x higher image
sensitivity.

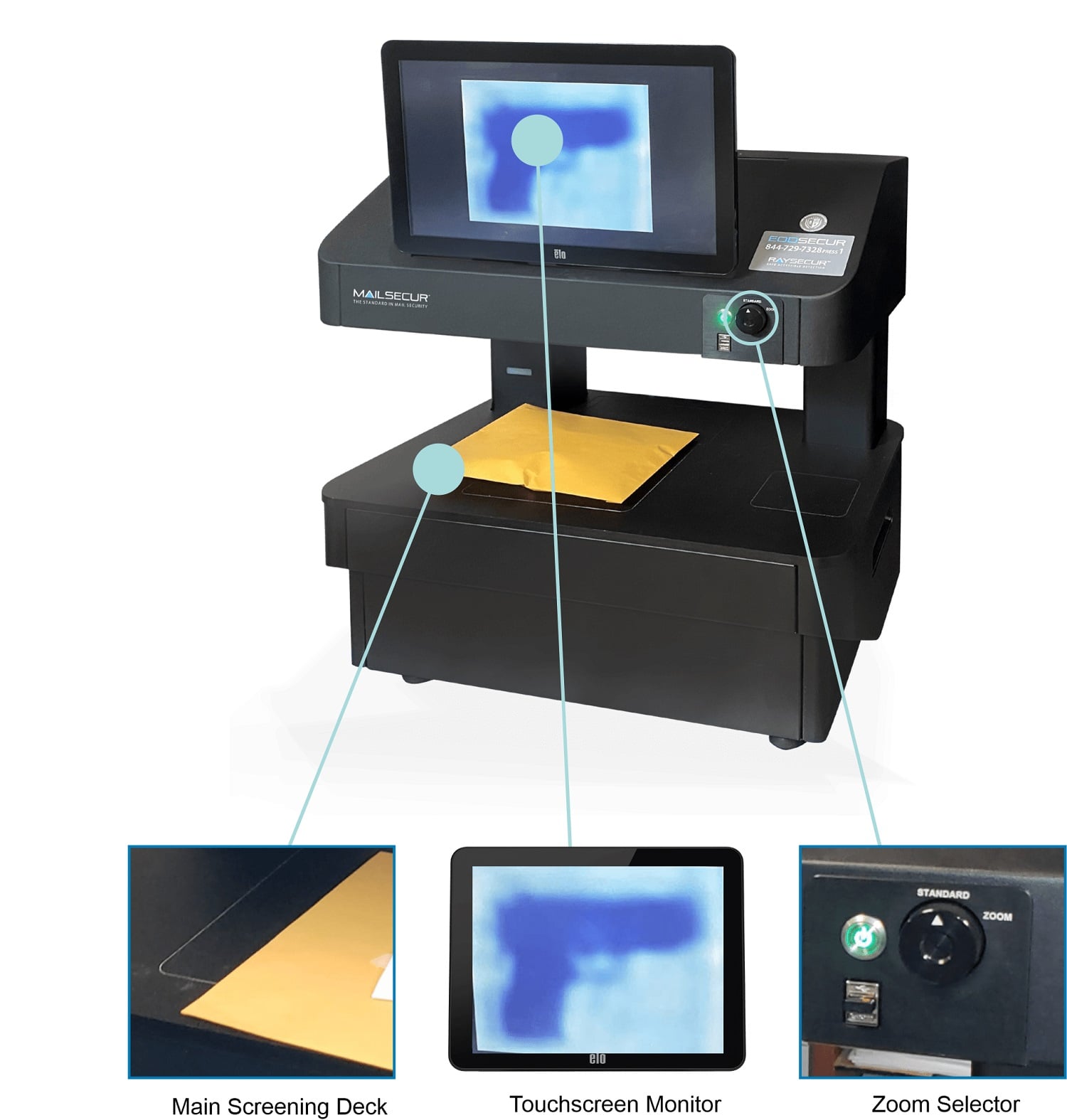

There are two scanning areas:

• Wide-format for an overall view of the object
• 3x optical zoom for detailed inspection

• Adjustable monitor and touch screen UI.
Integrated radiation and metal detectors.

• Designed as a compact tabletop unit weighing only
70 pounds, and standard power requirements.

• Because the THz mmWave technology is safe operators
can touch and manipulate the item during screening to
gain a real-time view of concealed items from all angles.

• Image and video capture ca
pabilities allow operators to
save findings for auditing or reporting needs.

• Network capabilities enable 24/365 remote EODSecur
expert support in real-time.

Real-Time, Expert,
Remote Support

RaySecur’s EODSecur™ service provides 24×365 access to military-trained explosive ordnance device (EOD) experts.
Anytime a suspicious item is identified our EOD support team can remotely login to the MailSecur scanner and provide a realtime assessment of the potential threat to support your organization’s reponse plans.

Desktop Mail Scanner Technical Specifications

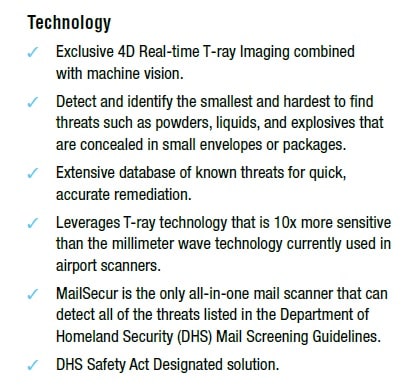

T-ray technology

Provided at 10x the Resolution Used in Airport Scanners
Screening Dual Zone – Standard and 3x Optical Zoom View
Safe, Requires No Certification, Dedicated Safety Protocols, or Special Shielding

Dimensions

19.5 in x 32 in x 31.5 in (49.5 x 81.3 x 80 cm)
70 Pounds (31.75 kg)

Camera(s)

T-ray (mmWave) and Optical

Field of View

9 ¼ in x 7 ¼ in (23.5 x 18.4 cm)

Image Enhancement

Multiple Color Mapping
Brightness and Contrast Adjustment
3X Optical Magnification

Automated Threat Detection

AI Supported Detection Software Update

Metal Detection

Sensitivity Control
Visual and Audible Alarm

Radiation Detection

Gamma Radiation
Beta Radiation

Power

Standard 110/220 V AC

Internet Connection

Ethernet, WiFi, LTE

Peripherals

USB, HDMI

Setup time

Typically <30 minutes
